Welding Stainless Steel to Mild Steel: The Right Way

Welding Guide · American Welding · Since 1989

A practical guide to welding stainless steel to mild steel — when it works, why ER309L is the right rod, how to control dilution, and how to prevent galvanic corrosion at the joint.

By Pete Adams · Owner, American Welding · Chicago + DuPage County, IL

Why You Would Weld Stainless to Mild Steel

Joining stainless steel to mild steel comes up constantly in real fabrication work. The reasons are almost always practical:

• Mild steel framework with stainless skin or working surface — food carts, kitchen equipment, restaurant counters built on a steel-tube frame with a stainless top
• Repair where one part is stainless and the surrounding structure is mild steel — replacing a rusted section of pipe, repairing a stainless trim on a mild-steel rail
• Cost optimization — stainless costs 4-5 times more than mild steel, so designers use stainless only where corrosion resistance matters and mild steel for structure
• Brewery, food, and process equipment — stainless tanks mounted on mild-steel skids; sanitary tube transitioning to mild-steel piping
• Architectural and decorative — stainless accents on steel structural columns or railings

Whatever the reason, the joining method is the same: use a filler rod designed to bridge the two alloys.

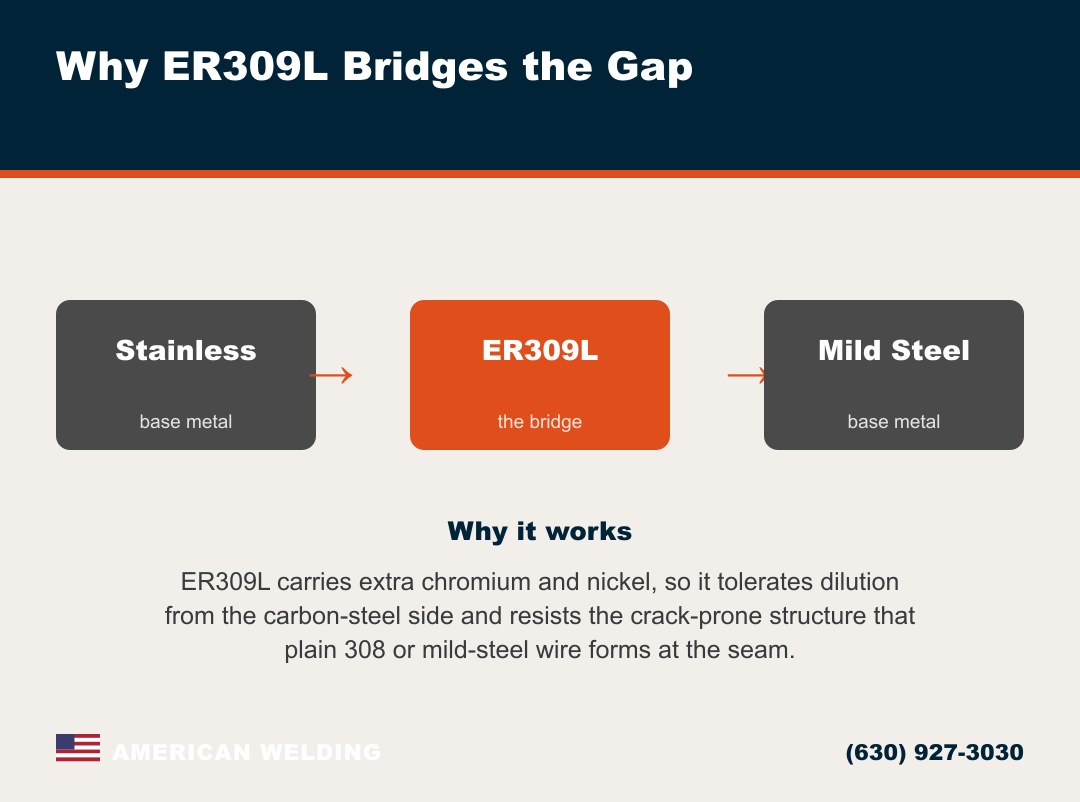

ER309L: The Right Filler Rod for Stainless to Mild Steel

Joining stainless to mild steel without the right rod will fail. Use a stainless rod (ER308L) and the weld dilutes with mild steel and cracks. Use a mild-steel rod (ER70S-6) and the weld rusts within weeks at the stainless side. The answer is a transition rod with extra alloy content to handle the mix:

• ER309L — the standard rod for joining stainless to mild steel. Higher chromium and nickel content than ER308L means the weld pool stays austenitic (corrosion-resistant) even after dilution from the mild steel base. The “L” is low-carbon to prevent chromium-carbide precipitation and rust at the stainless side.
• ER309LMo — the molybdenum version, used when the joint will be exposed to chlorides, salt, or aggressive sanitizers. The right rod for marine, chemical, or food-grade applications.
• ER312 — a high-ferrite alternative used for severe dilution conditions or where the joint needs even more crack resistance. Less common, used in repair welding on tool steels and high-carbon steels.

For most stainless-to-mild-steel work, ER309L is the right choice. Carry it on the truck or stock it in the shop — it is the standard answer for dissimilar-metal joints.

How to Weld Stainless to Mild Steel Step by Step

Step 1 — Clean both sides separately

Brush the stainless side with a stainless-only wire brush. Brush the mild steel side with a separate carbon-steel brush. Cross-contamination is the most common failure mode — a single carbon brush stroke on the stainless side will cause rust at the joint within months.

Step 2 — Pick the rod (ER309L for general work)

ER309L for general structural and equipment work. ER309LMo for marine, chemical, or food-grade. Match the rod diameter to the metal thickness as you would for any TIG or MIG job.

Step 3 — Set up shielding gas

For TIG: 100% argon. For MIG: a tri-mix gas (typically 90% helium / 7.5% argon / 2.5% CO2) or 98% argon / 2% CO2 for thinner sections. Standard MIG mild-steel gas (75/25 argon-CO2) is acceptable for heavy structural work but produces a less clean weld on the stainless side.

Step 4 — Bias the heat toward the stainless side

Mild steel and stainless conduct heat differently. Aim the arc more toward the stainless to balance penetration. The stainless side will take more heat than the carbon side to reach the same melting depth.

Step 5 — Run a controlled bead with adequate dilution

Travel at a steady pace. Aim for full penetration but avoid excessive dilution from the mild steel side, which will lower the alloy content of the weld pool. A weld pool that is too diluted will crack on cooling.

Step 6 — Post-weld treatment

Grind flush only with stainless-safe abrasives. Passivate the stainless side per ASTM A967. If the joint will be exposed to moisture or weather, paint or seal the carbon side to prevent galvanic corrosion.

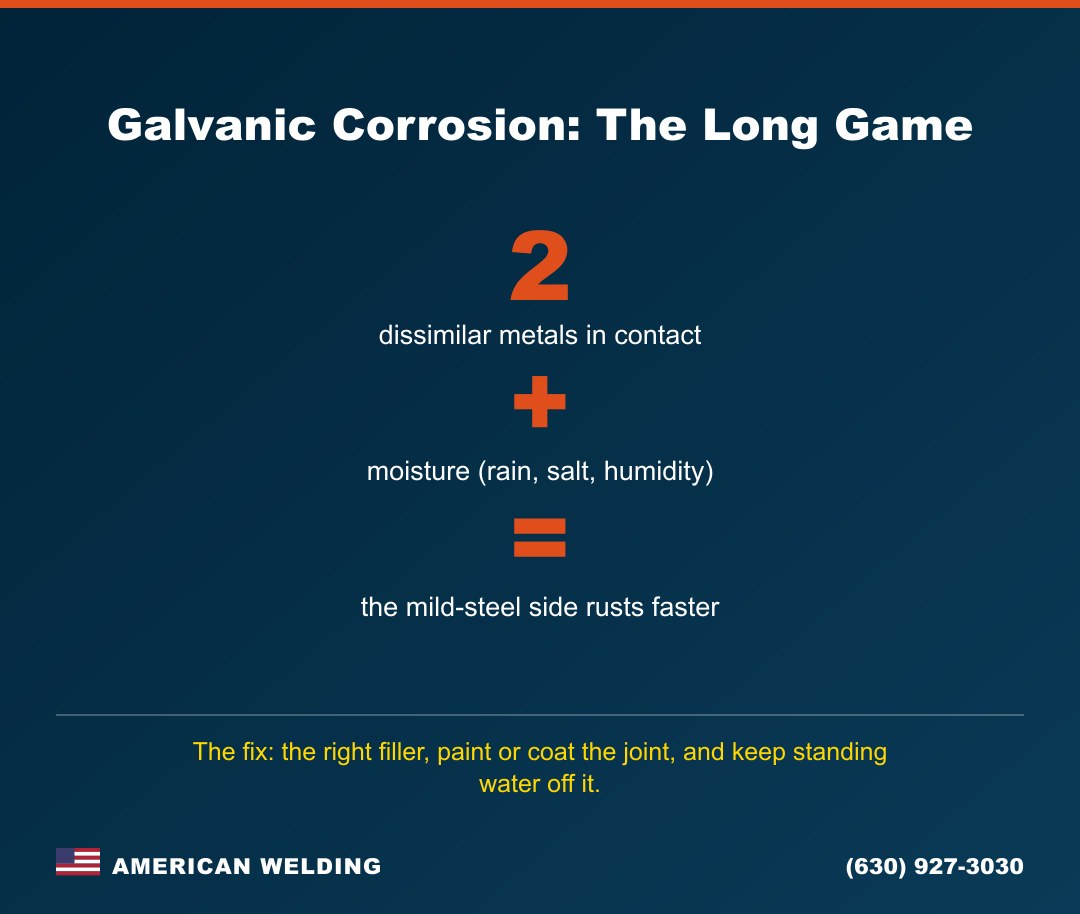

Galvanic Corrosion: The Long-Term Problem

Even with a perfect weld, stainless and mild steel can corrode each other over time when exposed to moisture. This is galvanic corrosion — the more “noble” metal (stainless) draws electrons from the less “noble” metal (mild steel), accelerating rust on the steel side. The longer the joint sits in moisture or weather, the worse it gets.

The fix on dissimilar joints exposed to moisture:

• Paint or epoxy-coat the mild-steel side right up to (but not over) the weld bead. This isolates the carbon steel from the moisture path and breaks the electrolytic circuit.
• Seal the joint with a flexible sealant on outdoor work to keep water from pooling at the seam.
• Use 309LMo rod if the joint will see chlorides, salt, or aggressive sanitizers.
• Specify 316 stainless if the stainless side is exposed to seawater or de-icing salts.
• Add a sacrificial anode on marine applications — a zinc or magnesium piece that corrodes preferentially and protects both base metals.

For interior, dry, or normally-conditioned applications, the issue is minor. For outdoor, marine, or chemical-exposure joints, designing around galvanic corrosion is essential to long-term life.

Common Mistakes Welding Stainless to Mild Steel

• Using a regular stainless rod (ER308L) instead of ER309L. The weld dilutes with mild steel, drops below the alloy threshold for austenitic structure, and cracks on cool-down.
• Using a mild-steel rod (ER70S-6) on the joint. The weld rusts within weeks at the stainless side because the carbon migrates from the rod and base into the chromium-rich zone.
• Cross-contamination from a single brush. Carbon transfer from a mild-steel brush onto the stainless side will cause rust at the joint. Use separate, dedicated brushes.
• Skipping passivation. Even a clean ER309L weld needs passivation per ASTM A967 to restore the chromium oxide layer on the stainless side.
• Not addressing galvanic corrosion in outdoor applications. The joint looks great on day one and rusts on the mild-steel side within two years if not coated and sealed.
• Hot-dipping galvanized after welding. Carbon steel galvanized after a stainless joint can flake the galvanizing right at the weld. Coordinate galvanizing before welding when possible, or seal/paint the joint.

Where Stainless-to-Mild-Steel Welds Show Up

• Restaurant and food-service equipment — stainless prep surfaces on mild-steel framework, exhaust hoods on steel mounts, custom stations
• Brewery and distillery — stainless tanks on mild-steel skids, sanitary tube transitioning to mild-steel piping
• Process and chemical equipment — stainless wetted surfaces on carbon-steel structural shells
• Marine and shipbuilding — stainless fittings on steel hulls, deck hardware
• Architectural metalwork — stainless accents on steel structural columns and railings
• Repair work — replacing a rusted section of mild-steel pipe with a stainless patch, repairing a stainless trim mounted on a steel substrate
• Industrial equipment — conveyor frames, hoppers, and handling equipment with stainless wetted parts

American Welding handles dissimilar-metal welding across Chicago and DuPage County for restaurants, breweries, contractors, and industrial customers. Restaurant equipment work is the most common application; structural and industrial dissimilar-metal welding follows.

Standards for Dissimilar-Metal Welding

• AWS D1.6 — Structural Welding Code, Stainless Steel covers stainless and dissimilar joints with stainless on one side. Published by the American Welding Society.
• AWS D1.1 — Structural Welding Code, Steel covers carbon steel and applies to the mild-steel side of the joint.
• ASME Section IX — for pressure-rated dissimilar-metal welds (boiler, food pipe, sanitary tube).
• ASTM A967 — passivation standard, applied to the stainless side of every dissimilar joint where corrosion resistance matters.
• OSHA welding and cutting standards — ventilation, PPE, and fume control. Stainless welding fume contains chromium and nickel; ventilation is non-negotiable.
